CENTRAL SUPPLY WATER FILTERS

Proteas Filter central supply water filters are suitable for installation only the central water supply.

Manual self-cleaning filter with scrapper and inlet/outlet 1/2″ – 30μm

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Main water supply filter double Big Blue 10”

Main water supply filter triple Big Blue 20”

Main water supply filter triple Big Blue 10”

Main water supply filter double Big Blue 20”

Main water supply filter Big Blue 20”

Main water supply filter Big Blue 10”

Main water supply filter double 7”

Main water supply filter double 5”

Main water supply filter double 10”

Self-Cleaning water filter with water pressure reducer

Main water supply filter single 10”

Main water supply filter single 7”

Self-Cleaning water filter with water pressure reducer

SKU: 022-0119

Self-Cleaning water filter Proteas is suitable for installation only in the central water supply. It includes a stainless steel 304 cartridge (mesh). You can open the drain valve in order to clean the mesh from the sediments. It is also possible to reduce the water pressure through the reducer that is built into the filter cap.

Characteristics:
• Cap material: Brass
• Housing material: PET (Polyethylene Terephthalate)
• Inlet/Outlet material: Brass
• Inlet/Outlet size: 3/4”-1”
• O-Ring: NBR (Nitrile Rubber)
• Weight: 1,150Kg
• Dimensions (HxLxW) cm: 26,00 x 15,00 x 8,00

Description
Additional information

Description

Self-Cleaning water filter Proteas is suitable for installation only in the central water supply. It includes a stainless steel 304 cartridge (mesh). You can open the drain valve in order to clean the mesh from the sediments. It is also possible to reduce the water pressure through the reducer that is built into the filter cap.

Additional information

Weight	1,15 kg
Dimensions	26 × 15 × 8 cm

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

SKU: 022-0117

Manual self cleaning filter with inlet/outlet 1″ and also 3/4″ – 30μm
The cleaning of the filter is done manually, by opening the drain valve that is installed in the bottom side. Also, you can remove the stainless steel mesh so as to clean it under water by scrubing it with a sponge or a toothbrush. Removes solid particles and sediments (sand, mud, rust, silt) up to 30μm.
It is eqquiped with drain valve and a wrench.

Characteristics:
• Head material: Brass
• Sump material: PΕΤ
• Inlet/outlet material: Brass
• Diameter inlet/outlet: 3/4”-1”
• O-ring material: NBR
• Working temperature: 2 °C – 35 °C
• Weight: 0,560 Kg
• Dimensions (cm): 23,00 x 15,00 x 6,00

Description
Additional information

Description

Manual self cleaning filter with inlet/outlet 1″ and also 3/4″ – 30μm
The cleaning of the filter is done manually, by opening the drain valve that is installed in the bottom side. Also, you can remove the stainless steel mesh so as to clean it under water by scrubing it with a sponge or a toothbrush. Removes solid particles and sediments (sand, mud, rust, silt) up to 30μm.
It is eqquiped with drain valve and a wrench.

Additional information

Weight	0,45 kg
Dimensions	21 × 9 × 6 cm

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

SKU: 022-0118-1

Manual self cleaning filter with inlet/outlet 1/2″ – 30μm
The cleaning of the filter is done manually, by rotating the blue ring which rotates the plastic scrapper around the stainless steel mesh and by opening the drain valve that is installed in the bottom side. Also, you can remove the stainless steel mesh so as to clean it under water by scrubing it with a sponge or a toothbrush. Removes solid particles and sediments (sand, mud, rust, silt) up to 30μm.
It is eqquiped with drain valve and a wrench.

Characteristics:
• Ηead material: Brass
• Sump material: PΕΤ
• Inlet/outlet material: Brass
• Diameter inlet/outlet: 3/4”-1”
• O-ring material: NBR
• Working temperature: 2 °C – 35 °C
• Weight: 0,660 Kg
• Dimensions (cm): 21,00 x 9,00 x 6,00

Description
Additional information

Description

Manual self cleaning filter with inlet/outlet 1/2″ – 30μm
The cleaning of the filter is done manually, by rotating the blue ring which rotates the plastic scrapper around the stainless steel mesh and by opening the drain valve that is installed in the bottom side. Also, you can remove the stainless steel mesh so as to clean it under water by scrubing it with a sponge or a toothbrush. Removes solid particles and sediments (sand, mud, rust, silt) up to 30μm.
It is eqquiped with drain valve and a wrench.

Additional information

Weight	0,45 kg
Dimensions	21 × 9 × 6 cm

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

SKU: 022-0118

Manual self cleaning filter with inlet/outlet 1/2″ – 30μm
The cleaning of the filter is done manually, by rotating the blue ring which rotates the plastic scrapper around the stainless steel mesh and by opening the drain valve that is installed in the bottom side. Also, you can remove the stainless steel mesh so as to clean it under water by scrubing it with a sponge or a toothbrush. Removes solid particles and sediments (sand, mud, rust, silt) up to 30μm.
It is eqquiped with drain valve and a wrench.

Characteristics:
• Ηead material: Brass
• Sump material: PΕΤ
• Inlet/outlet material: Brass
• Diameter inlet/outlet: 3/4”-1”
• O-ring material: NBR
• Working temperature: 2 °C – 35 °C
• Weight: 0,660 Kg
• Dimensions (cm): 21,00 x 9,00 x 6,00

Description
Additional information

Description

Manual self cleaning filter with inlet/outlet 1/2″ – 30μm
The cleaning of the filter is done manually, by rotating the blue ring which rotates the plastic scrapper around the stainless steel mesh and by opening the drain valve that is installed in the bottom side. Also, you can remove the stainless steel mesh so as to clean it under water by scrubing it with a sponge or a toothbrush. Removes solid particles and sediments (sand, mud, rust, silt) up to 30μm.
It is eqquiped with drain valve and a wrench.

Additional information

Weight	0,45 kg
Dimensions	21 × 9 × 6 cm

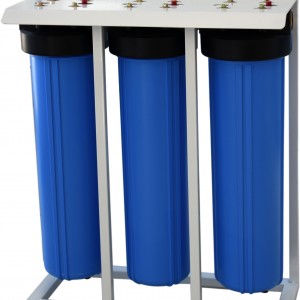

Main water supply filter triple Big Blue 20”

SKU: 023-0112

Triple water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 20”.

Characteristics
• Cap material: PP (Polypropylene)
• Housing material: PP (Polypropylene)
• Inlet/Outlet material: Brass/plastic
• Diameter inlet/outlet: 1”, 1,5”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weigth: 17,700 Kg
• Dimensions (HxLxW) cm: 73,00 x 57,00 x 23,50

Description
Additional information

Description

Triple water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 20”.

Additional information

Weight	17,7 kg
Dimensions	73 × 57 × 23,50 cm

Main water supply filter triple Big Blue 10”

SKU: 023-0111

Triple water filter Big Blue 10” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 10”.

Characteristics
• Cap material: PP (Polypropylene)
• Housing material: PP (Polypropylene)
• Inlet/Outlet material: Brass/plastic
• Diameter inlet/outlet: 1”, 1,5”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weigth: 13,200Kg
• Dimensions (HxLxW) cm: 73,00 x 57,00 x 23,50

Description
Additional information

Description

Triple water filter Big Blue 10” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 10”.

Additional information

Weight	13,2 kg
Dimensions	53 × 57 × 23,5 cm

Main water supply filter double Big Blue 20”

SKU: 023-0105

Double water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 20”.

Characteristics:
• Cap material: PP (Polypropylene)
• Hosuing material: PP (Polypropylene)
• Inlet/Outlet material: Brass/Plastic
• Diameter inlet/outlet: 1”, 1,5”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weight: 11,800 Kg
• Dimensions (HxLxW) cm: 73,00 x 38,00 x 23,50

Description
Additional information

Description

Double water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 20”.

Additional information

Weight	11,8 kg
Dimensions	73 × 38 × 23,50 cm

Main water supply filter double Big Blue 10”

PFBB2-BR10-1, PFBB2-PL10-15

SKU: 023-0104

Double water filter Big Blue 10” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 10”.

Characteristics:
• Cap material: PP (Polypropylene)
• Housing material: PP (Polypropelene)
• Inlet/Outlet material: Brass/Plastic
• Diameter inlet/outlet: 1”, 1,5”
• O-ring material: NBR (Nitrile Rubber)
• Inlet/Outlet: 1/2”, 3/4”, 1”
• Working temperature: 2 °C – 35 °C
• Weigth: 3,500 Kg
• Dimensions (HxLxW) cm: 53,00 x 38,00 x 23,50

WATER-FILTER-CENTRAL-SUPPLY-MANUAL_GR.pdf

Description
Additional information

Description

Double water filter Big Blue 10” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 10”.

Additional information

Weight	3,5 kg
Dimensions	60 × 18,5 cm

Main water supply filter Big Blue 20”

SKU: 023-0102

Single water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 20”.

Characteristics:
• Cap material: PP (Polypropylene)
• Hosuing material: PP (Polypropylene)
• Inlet/Outlet material: Brass/Plastic
• Diameter inlet/outlet: 1”, 1,5”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weight: 3,500 Kg
• Dimensions (HxD) cm: 60,00 x 18,50

Description
Additional information

Description

Single water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 20”.

Additional information

Weight	3,5 kg
Dimensions	60 × 18,5 cm

Main water supply filter Big Blue 10”

SKU: 023-0100

Single water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 10”.

Characteristics:
• Cap material: PP (Polypropylene)
• Hosuing material: PP (Polypropylene)
• Inlet/Outlet material: Brass/Plastic
• Diameter inlet/outlet: 1”, 1,5”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weight: 3,500 Kg
• Dimensions (HxD) cm: 60,00 x 18,50

Description
Additional information

Description

Single water filter Big Blue 20” Proteas is suitable for installation in the central water supply. It is compatible with filter cartridges Big Blue 10”.

Additional information

Weight	1,55 kg
Dimensions	34 × 18,5 cm

Main water supply filter double 5”

SKU: 021-0121

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 5”.

Characteristics
• Cap material: PP (Polypropylene)
• Housing material: PΕΤ (Polyethylene Terephthalate)
• Inlet/Outlet material: Brass
• Diameter inlet/outlet: 1/2”, 3/4”, 1”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weight: 1,550 Kg
• Dimensions (HxLxW) cm: 19,00 x 27,50 x 13,00

Description
Additional information

Description

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 5”.

Additional information

Weight	1,55 kg
Dimensions	19 × 27,5 cm

Main water supply filter double 7”

SKU: 021-0118

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 7”.

Characteristics
• Cap material: PP (Polypropylene)
• Housing material: PΕΤ (Polyethylene Terephthalate)
• Inlet/Outlet material: Brass
• Diameter inlet/outlet: 1/2”, 3/4”, 1”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weight: 1,650 Kg
• Dimensions (HxLxW) cm: 24,00 x 27,50 x 13,00

Description
Additional information

Description

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 7”.

Additional information

Weight	1,65 kg
Dimensions	24 × 27,5 cm

Main water supply filter double 10”

PFCS2-BR10-12, PFCS2-BR10-34, PFCS2-BR10-1

SKU: 021-0115

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 10”.

Characteristics
• Cap material: PP (Polypropylene)
• Housing material: PΕΤ (Polyethylene Terephthalate)
• Inlet/Outlet material: Brass
• Diameter inlet/outlet: 1/2”, 3/4”, 1”
• O-ring material: NBR (Nitrile Rubber)
• Working temperature: 2 °C – 35 °C
• Weight: 1,850 Kg
• Dimensions (HxLxW) cm: 32,00 x 27,50 x 13,00

WATER-FILTER-CENTRAL-SUPPLY-MANUAL_GR.pdf

Description
Additional information

Description

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 10”.

Additional information

Weight	1,85 kg
Dimensions	32 × 27 cm

Main water supply filter single 5”

SKU: 021-0109

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 5”.

Characteristics:
• Cap material: PP (Polypropylene)
• Housing material: PET (Polyethylene Terephthalate)
• Inlet/Outlet material: Brass
• Inlet/Outlet size: 1/2”, 3/4”, 1”
• O-Ring: NBR (Nitrile Rubber)
• Maximum working pressure: 22bar
• maximum working temprature: 2 °C – 35 °C
• Weight: 0,500Kg
• Dimensions (HxD) cm: 19,00 x 13,00

Description
Additional information

Description

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 5”.

Additional information

Weight	0,500 kg
Dimensions	19 × 13 cm

Main water supply filter single 7”

SKU: 021-0106

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 7”.

Characteristics:
• Cap material: PP (Polypropylene)
• Housing material: PET (Polyethylene Terephthalate)
• Inlet/Outlet material: Brass
• Inlet/Outlet size: 1/2”, 3/4”, 1”
• O-Ring: NBR (Nitrile Rubber)
• Maximum working pressure: 20bar
• maximum working temprature: 2 °C – 35 °C
• Weight: 0,740Kg
• Dimensions (HxD) cm: 24,00 x 13,00

WATER-FILTER-CENTRAL-SUPPLY-MANUAL_GR.pdf

Description
Additional information

Description

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 7”.

Additional information

Weight	0,740 kg
Dimensions	24 × 13 cm

Main water supply filter single 10”

SKU: 021-0103

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 10”.

Characteristics:
• Cap material: PP (Polypropylene)
• Housing material: PET (Polyethylene Terephthalate)
• Inlet/Outlet material: Brass
• Inlet/Outlet size: 1/2”, 3/4”, 1”
• O-Ring: NBR (Nitrile Rubber)
• Maximum working pressure: 18bar
• maximum working temprature: 2 °C – 35 °C
• Weight: 0,840Kg
• Dimensions (HxD) cm: 32,00 x 13,00

Description
Additional information

Description

Proteas water filter is suitable for installation only in the central water supply. It is compatible with filter cartridges 10”.

Additional information

Weight	0,840 kg
Dimensions	32 × 13 cm

CENTRAL SUPPLY WATER FILTERS

Self-Cleaning water filter with water pressure reducer

Description

Additional information

Related products

Main water supply filter single 7”

Main water supply filter double Big Blue 10”

Main water supply filter Big Blue 20”

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

Description

Additional information

Related products

Main water supply filter double 5”

Main water supply filter single 7”

Main water supply filter triple Big Blue 20”

Self-Cleaning water filter with water pressure reducer

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Description

Additional information

Related products

Self-Cleaning water filter with water pressure reducer

Main water supply filter single 10”

Main water supply filter triple Big Blue 10”

Main water supply filter Big Blue 10”

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Description

Additional information

Related products

Main water supply filter Big Blue 20”

Main water supply filter double 5”

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Main water supply filter double Big Blue 20”

Main water supply filter triple Big Blue 20”

Description

Additional information

Related products

Main water supply filter single 7”

Main water supply filter double Big Blue 20”

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

Main water supply filter triple Big Blue 10”

Description

Additional information

Related products

Manual self-cleaning filter with scrapper and inlet/outlet 1/2″ – 30μm

Main water supply filter double 5”

Main water supply filter Big Blue 10”

Main water supply filter single 10”

Main water supply filter double Big Blue 20”

Description

Additional information

Related products

Main water supply filter double 10”

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

Main water supply filter single 10”

Manual self cleaning filter 1/2″ inlet/outlet 30μm with scrapper

Main water supply filter double Big Blue 10”

Description

Additional information

Related products

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

Main water supply filter double 5”

Manual self-cleaning filter with scrapper and inlet/outlet 1/2″ – 30μm

Main water supply filter double 7”

Main water supply filter Big Blue 20”

Description

Additional information

Related products

Main water supply filter single 10”

Main water supply filter double 10”

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

Main water supply filter double Big Blue 20”

Main water supply filter Big Blue 10”

Description

Additional information

Related products

Manual self cleaning filter 1″ & 3/4″ inlet/outlet 30μm

Main water supply filter single 5”

Main water supply filter triple Big Blue 10”
